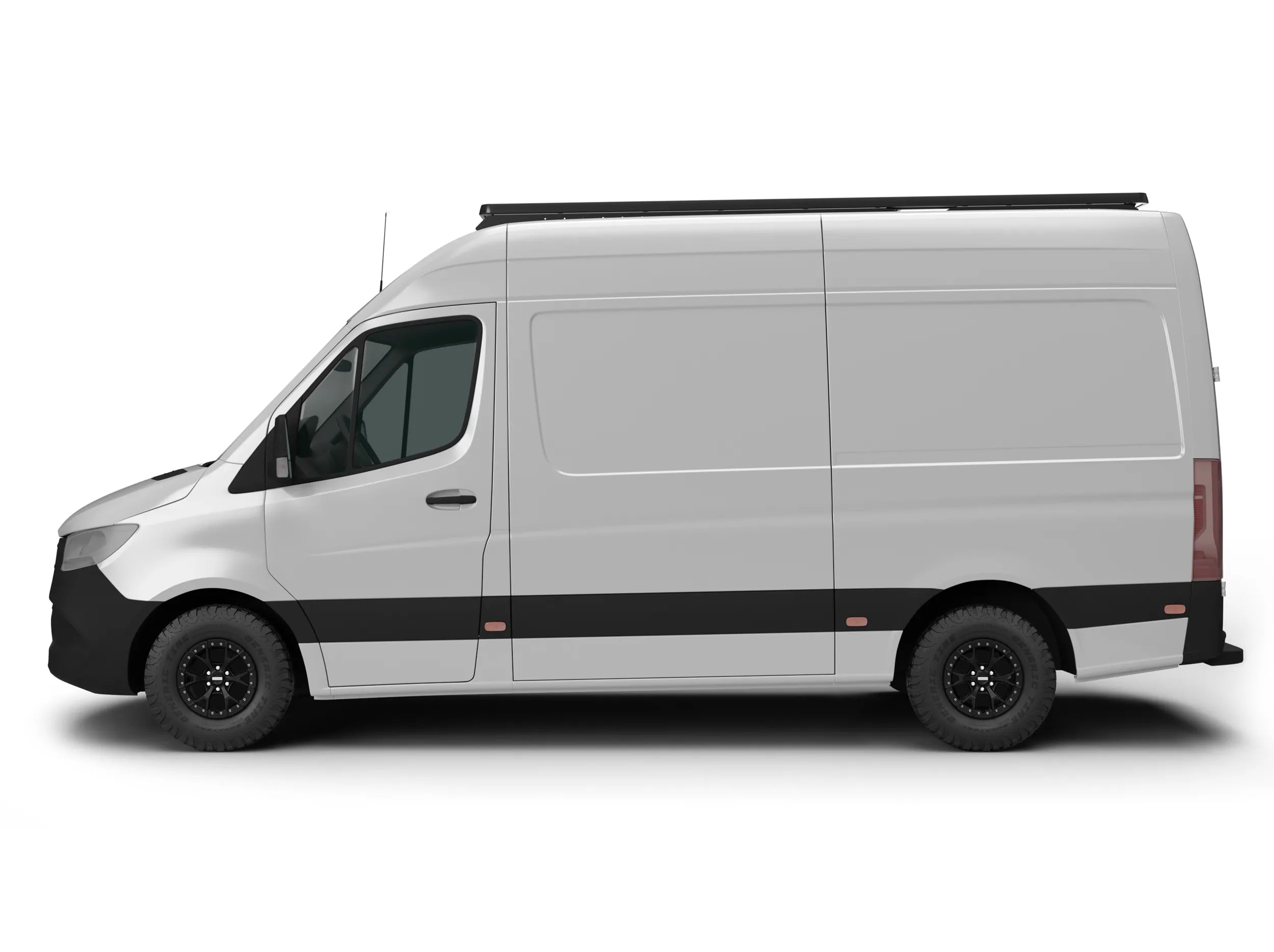

Leitner Designs ACS ROOF low-roof assembly for Mercedes-Benz Sprinter 144 (2007+)

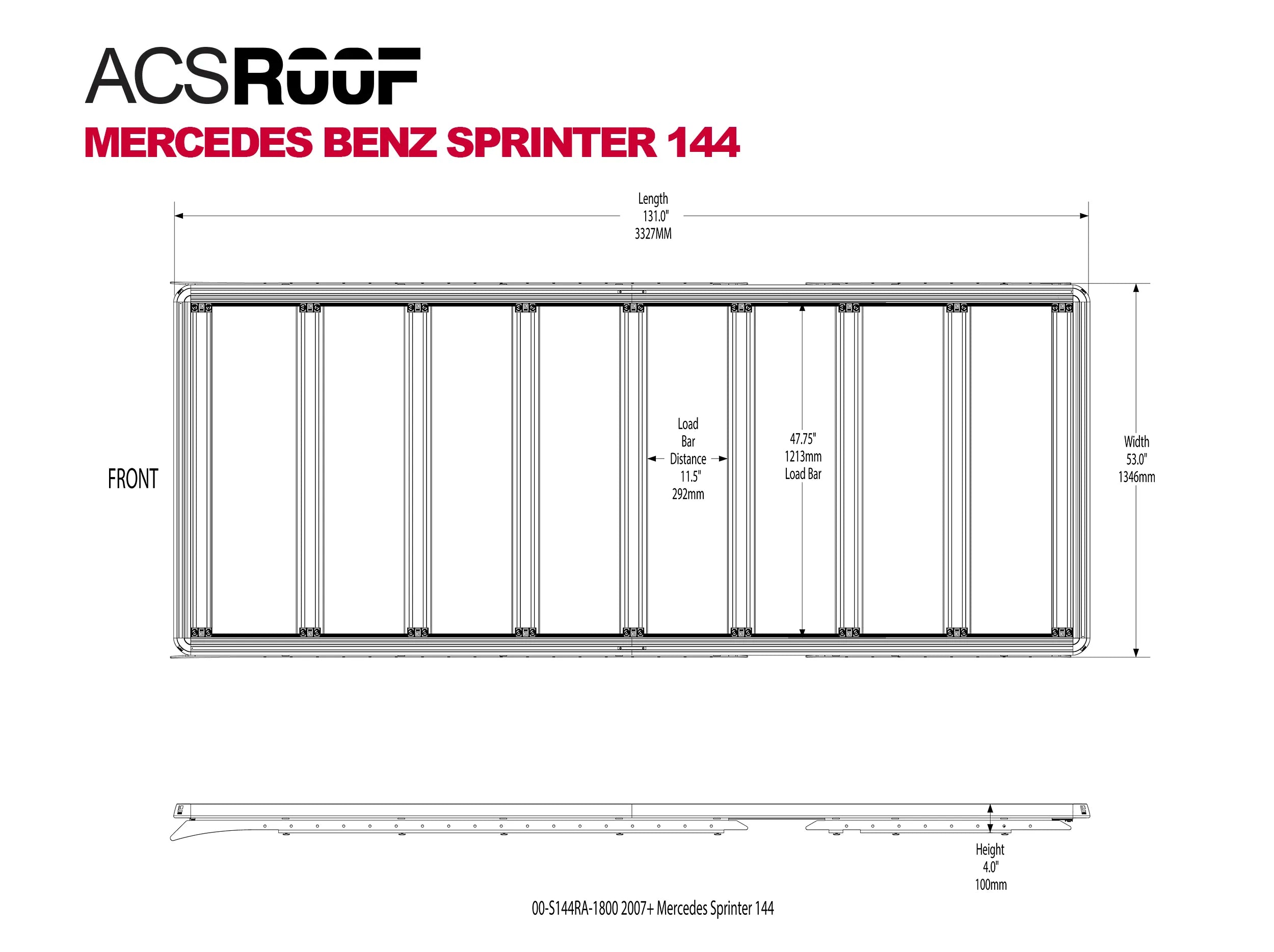

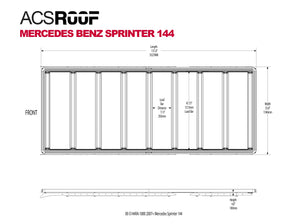

Leitner Designs ACS ROOF for Mercedes-Benz Sprinter 144 dimensioned schematic

ACS ROOF for MERCEDES BENZ SPRINTER 144 | 2007+

$2,650.00

Select HIGH or LOW Roof for Sprinter 144

Quantity

ACS ROOF: The Modular, No-Drill Roof Rack for Your Mercedes-Benz Sprinter 144

A low-profile, no-drill platform rack with infinitely adjustable load bars — engineered for the Mercedes-Benz Sprinter 144 (high & low roof, 2007+) and built to expand as your gear does.

PART # 00-S144LRA-1892 (IN STOCK)

PART # 00-S144RA-1800 (IN STOCK)

No-drill, bolt-on install. Fits Sprinter 144 high & low roof, with or without factory rails. Ships via UPS in two boxes.

✓ No-drill, bolt-on — adds just 4 inches to your Sprinter's height, with no permanent modification.
✓ High & low roof mounting — compatible with the Sprinter 144 high and low roof, both with and without a factory rail system. (Installing without factory rails? Call us at 949-395-3049.)

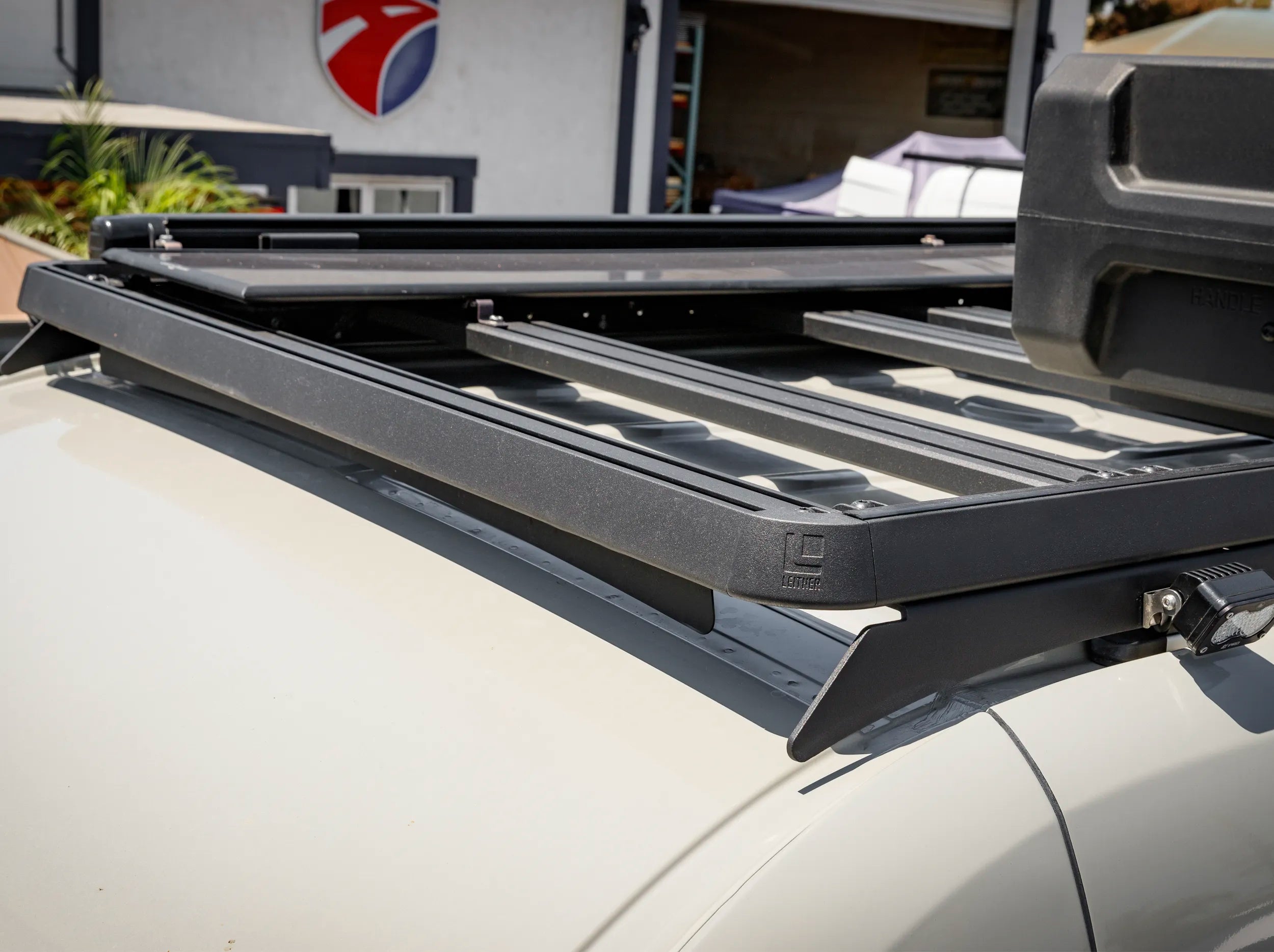

✓ Modular, adjustable load bars — slide into toothed channels so you can reposition gear or add bars as your setup grows.

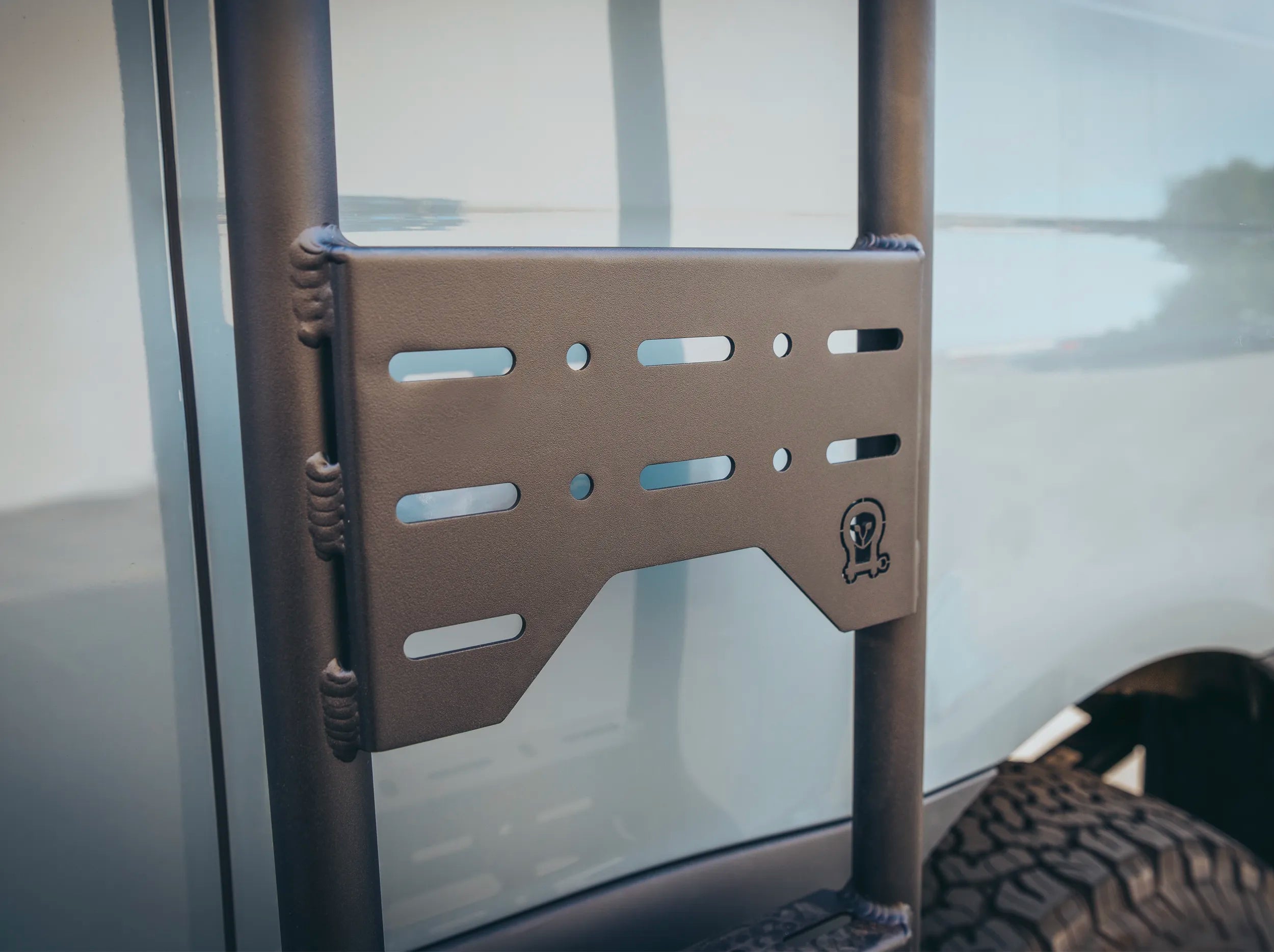

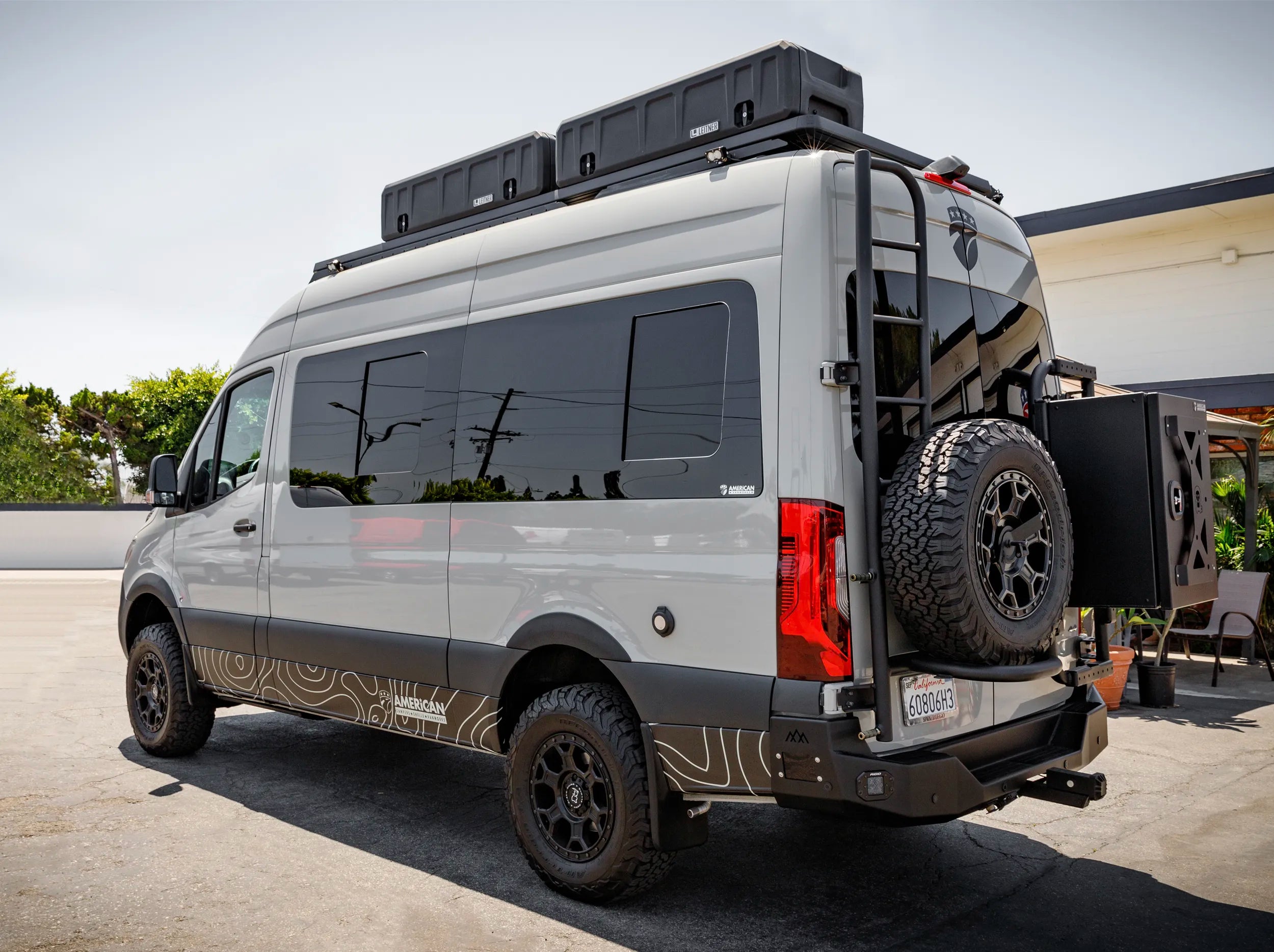

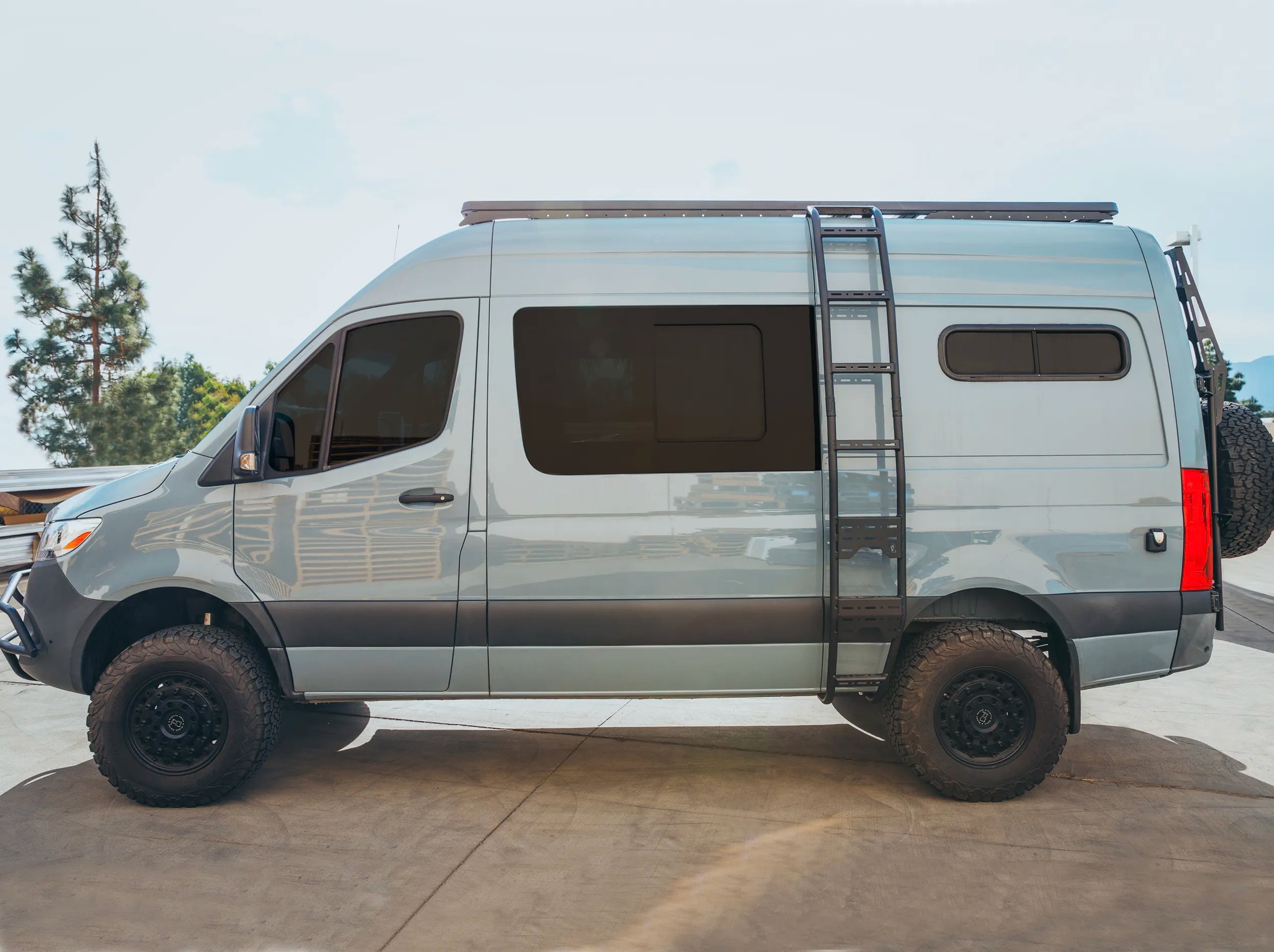

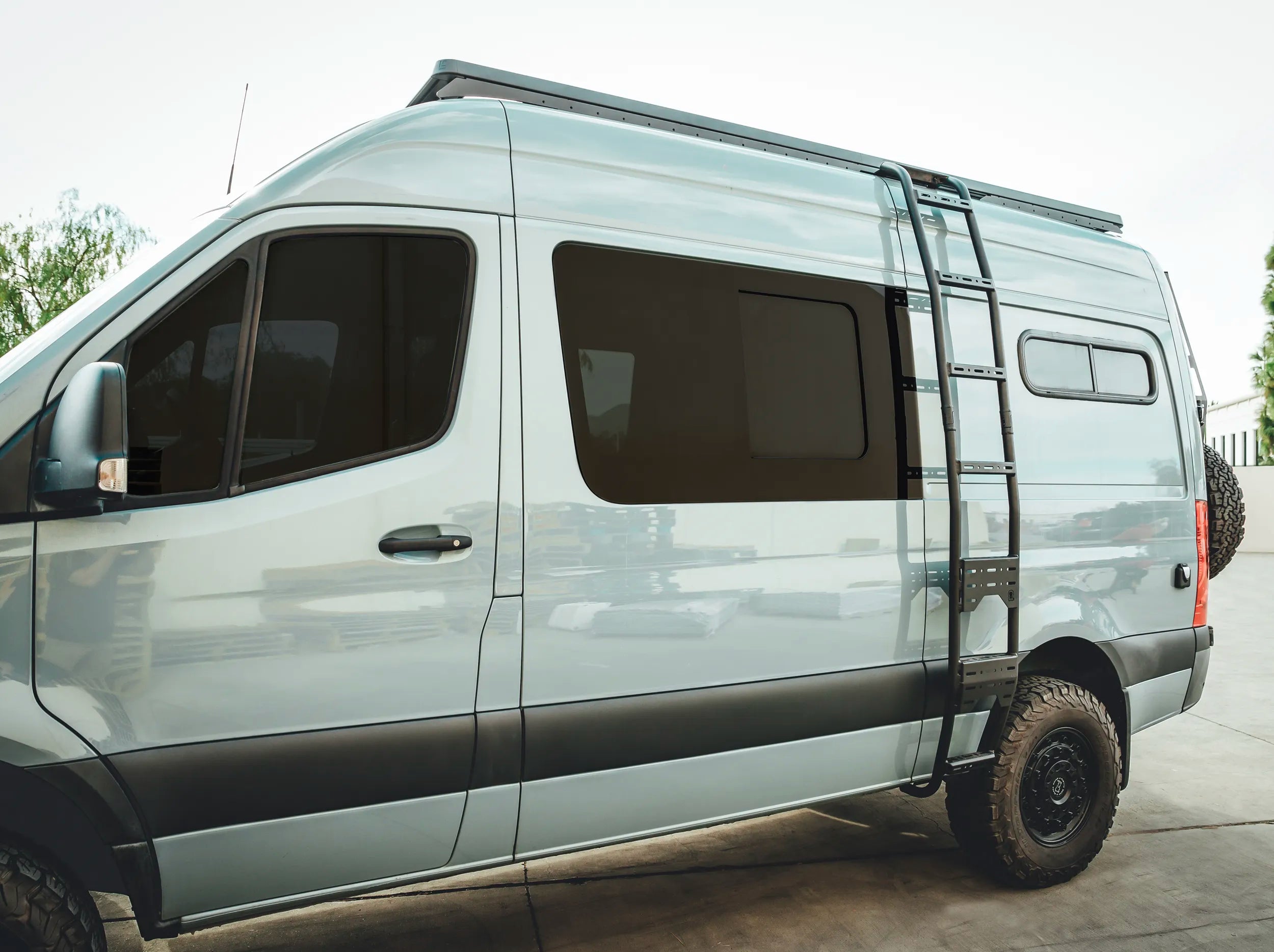

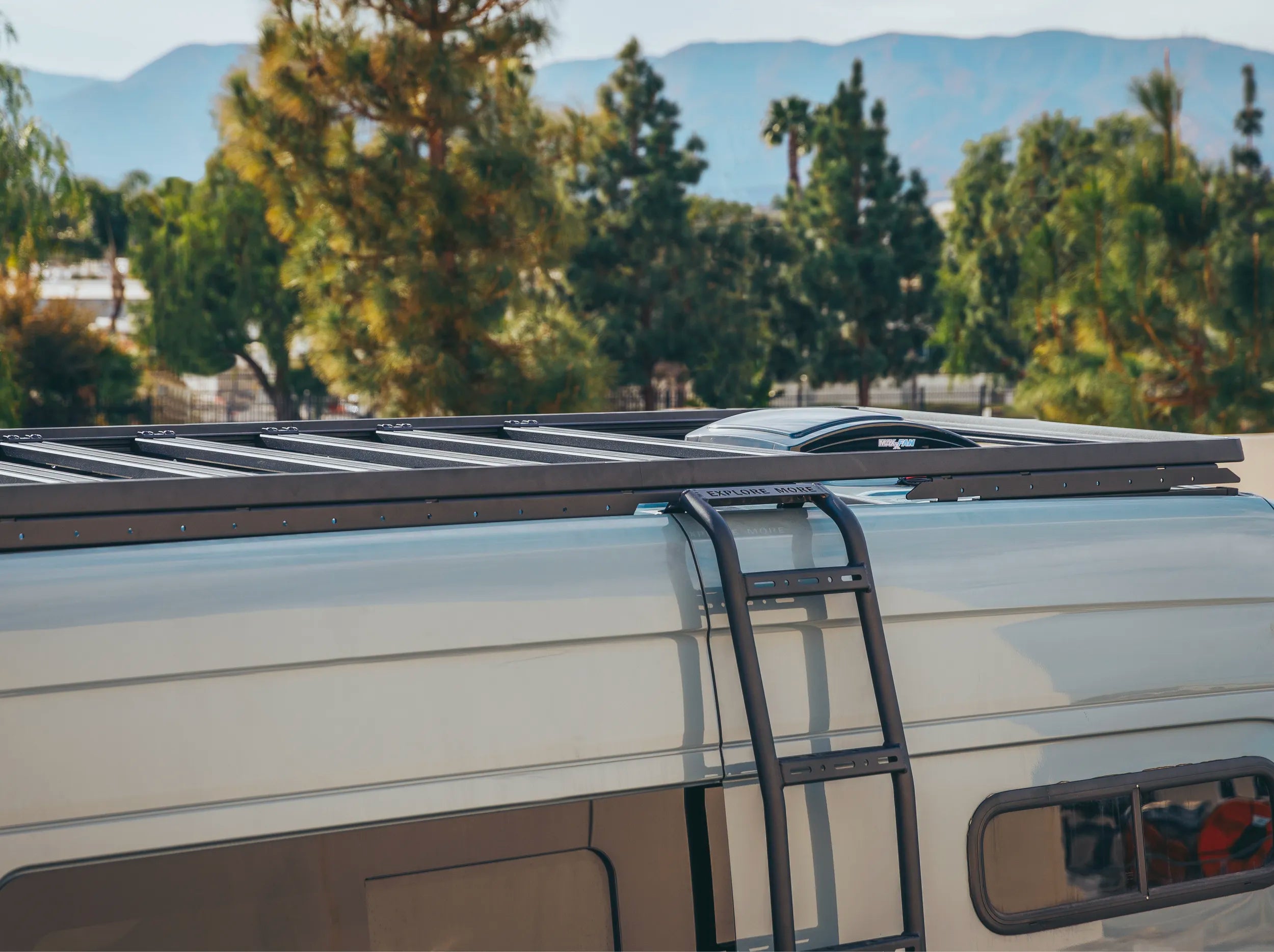

✓ OWL SIDE ladder ready — optional OWL SIDE ladder integration (requires factory roof rails).
✓ Cross-brand compatible — works with T-track accessories from Thule, Rhino-Rack, and Yakima.

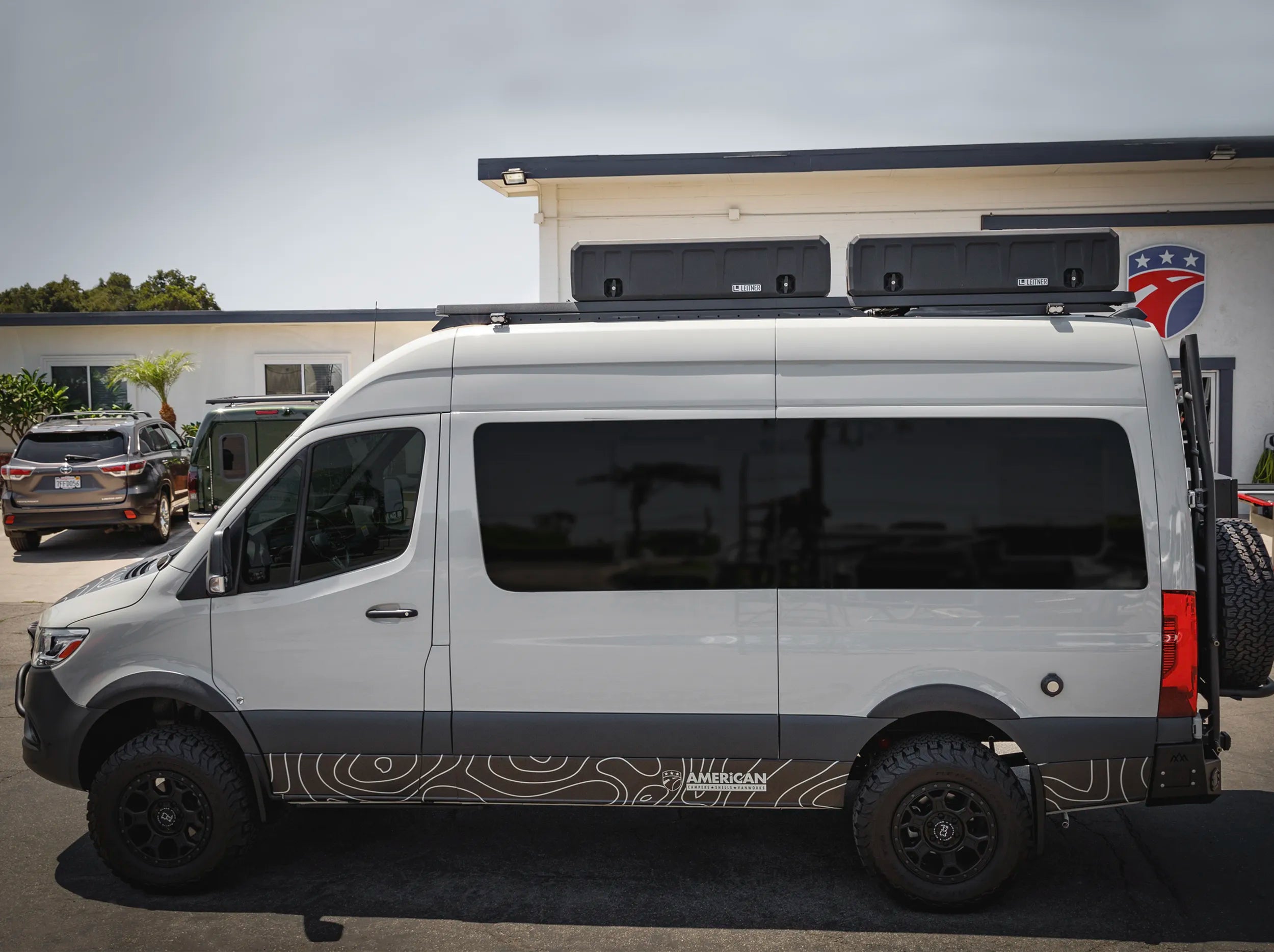

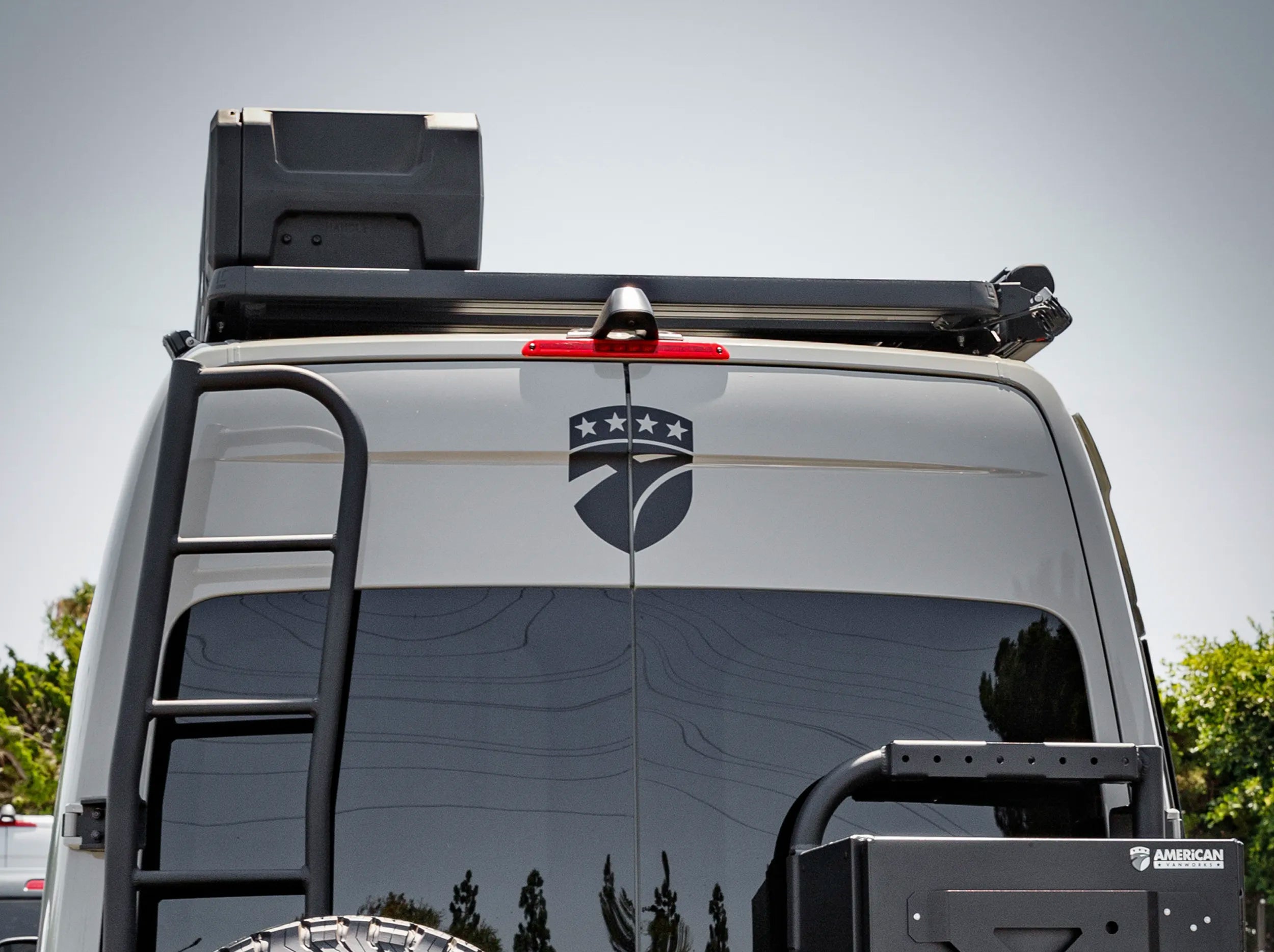

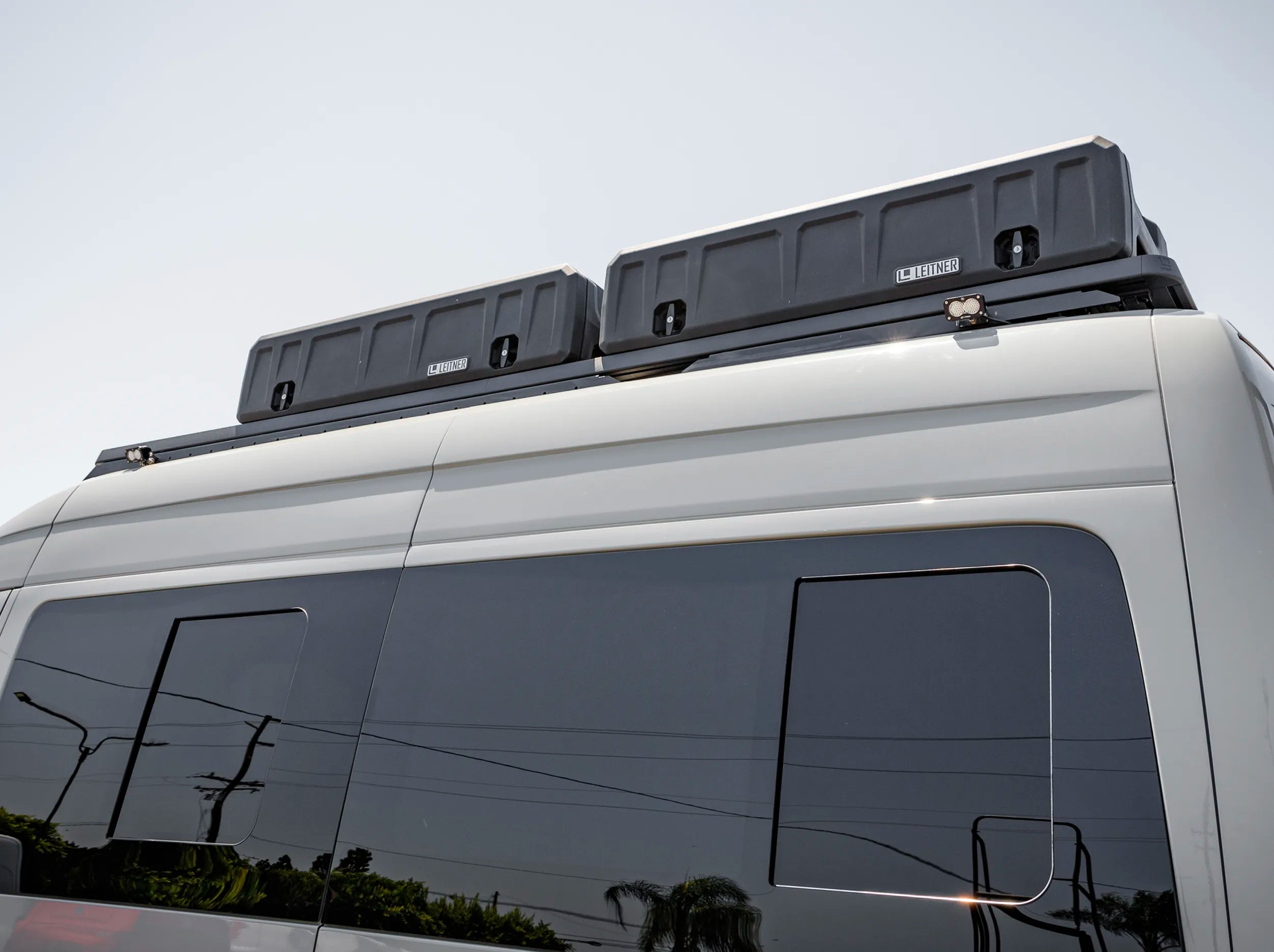

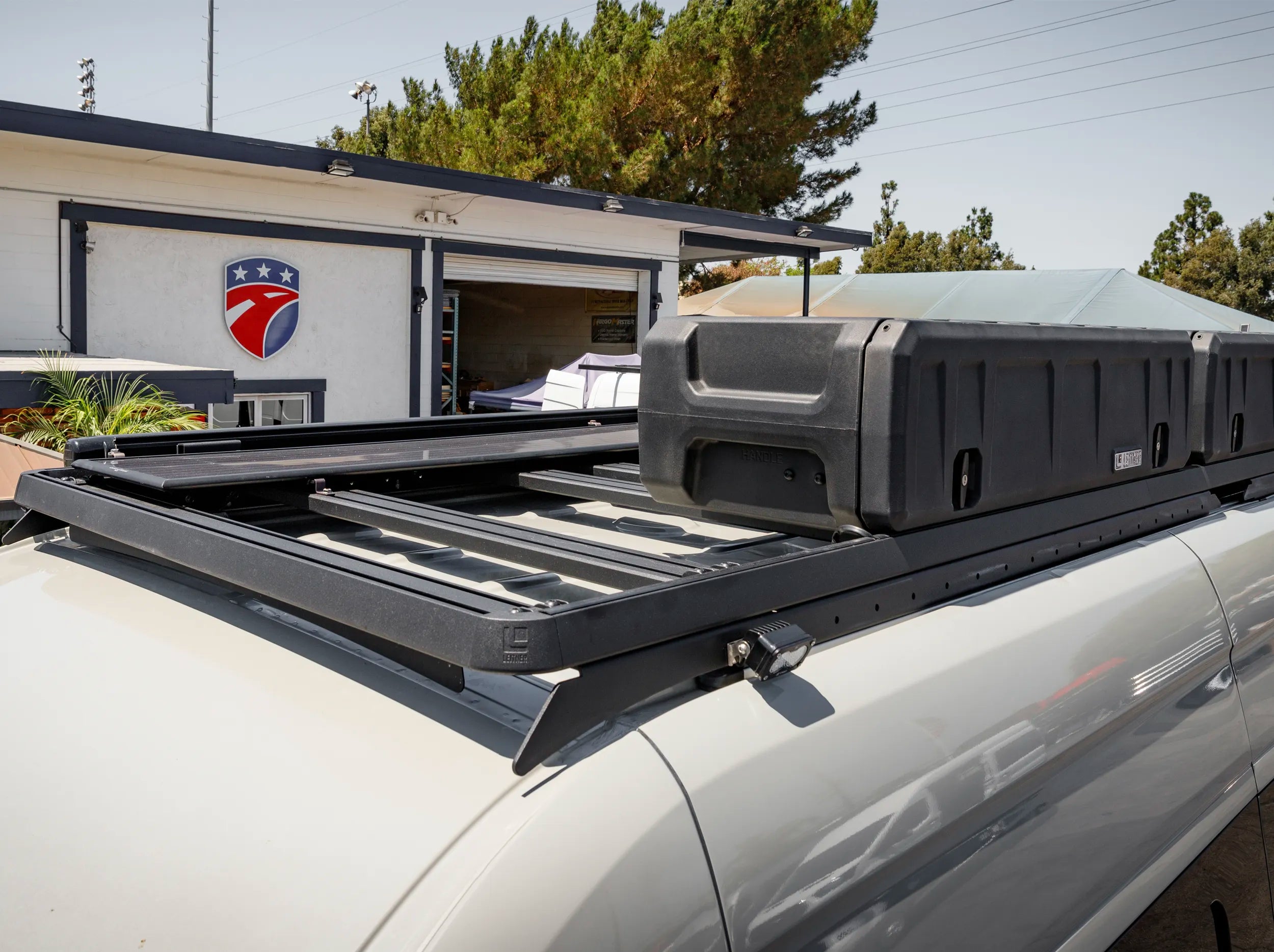

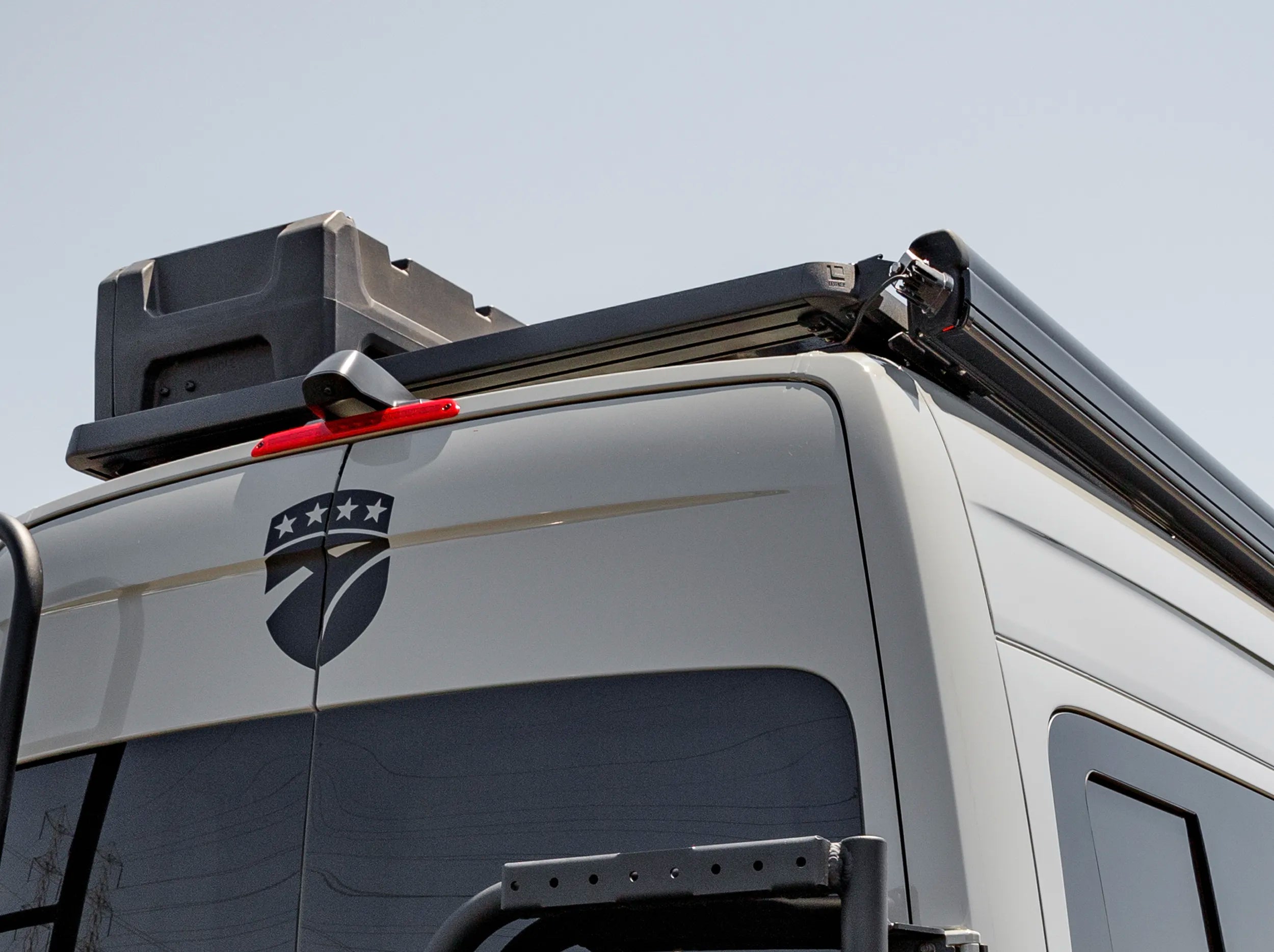

✓ Side-access, lockable storage ready — pairs with the GearPOD ROOF side-opening, water-resistant, locking storage box.

Why ACS ROOF

ACS ROOF brings 10 years of Active Cargo System engineering — and hundreds of thousands of off-road testing miles — to the roof of your Mercedes-Benz Sprinter 144. It's a modular, no-drill platform rack with infinitely adjustable sliding load bars, built stronger and lighter than typical roof rack systems, and easy enough to assemble yourself.

Every ACS ROOF is over-engineered and over-built in Corona, California, with Grade 10.9 black Zi-Ni fasteners, a dual-stage powder coat finish, and a low 4-inch profile. Removable corner caps make auxiliary lighting installation simple, and an optional OWL SIDE ladder integrates for easy roof access when factory rails are present.

Specifications

Part # (Low roof)	00-S144LRA-1892
Part # (High roof)	00-S144RA-1800
Weight	100 lbs
Overall height	4 inches
Material	Aluminum alloy
Fasteners	Grade 10.9 black Zn-Ni coated with Loctite
Wall thickness	Heavy-duty 1.5mm to 3.0mm multi-wall aluminum
Wind noise reducer	Included
Accessory compatibility	Fits many Thule, Rhino-Rack, and Yakima T-track accessories
Finish	Zinc-plated with dual-stage powder coat
Load capacity	1,000 lbs static, 600 lbs on-road, 300 lbs off-road (always check your vehicle manufacturer's roof load rating)
Fitment	Mercedes-Benz Sprinter 144 (high & low roof), 2007+
Origin	Designed, engineered, and manufactured in the USA

Installation

ACS ROOF installs with basic hand tools and no drilling. It mounts to the Sprinter 144 with or without a factory rail system — if you're installing without factory rails, call us at 949-395-3049 before you begin.

Position the rack

Set the ACS ROOF frame onto the Sprinter's roof mounting points per the install guide.

Secure the fasteners

Attach using the included Grade 10.9 black Zi-Ni fasteners with Loctite, torquing to the spec in the install guide.

Adjust the load bars

Slide the load bars into the toothed channels and position them for your gear before locking them in place.

Download the full installation instructions (PDF) →

Frequently Asked Questions

See all FAQs →

Does the ACS ROOF rack require drilling to install on my Sprinter 144?

No. ACS ROOF is a no-drill, bolt-on roof rack. It fits the Sprinter 144 high and low roof, with or without a factory rail system. If installing without factory rails, call us at 949-395-3049.

Does it fit both the high- and low-roof Sprinter 144?

Yes. There are two versions — low roof (part 00-S144LRA-1892) and high roof (part 00-S144RA-1800) — both for the 2007+ Sprinter 144.

Can I add the OWL SIDE ladder?

Yes, as an optional integration — but the OWL SIDE ladder requires factory roof rails to mount.

What is the load capacity of the ACS ROOF?

The ACS ROOF is rated at 1,000 lbs static, 600 lbs on-road, and 300 lbs off-road. Always confirm your vehicle manufacturer's roof load rating, as it may be lower than the rack's capacity.

Can I add lockable, water-resistant storage to the ACS ROOF?

Yes, with the GearPOD ROOF accessory. It's a nearly 96-quart, side-opening storage box with locking handles and a water-resistant seal, so you can access your gear from the side.

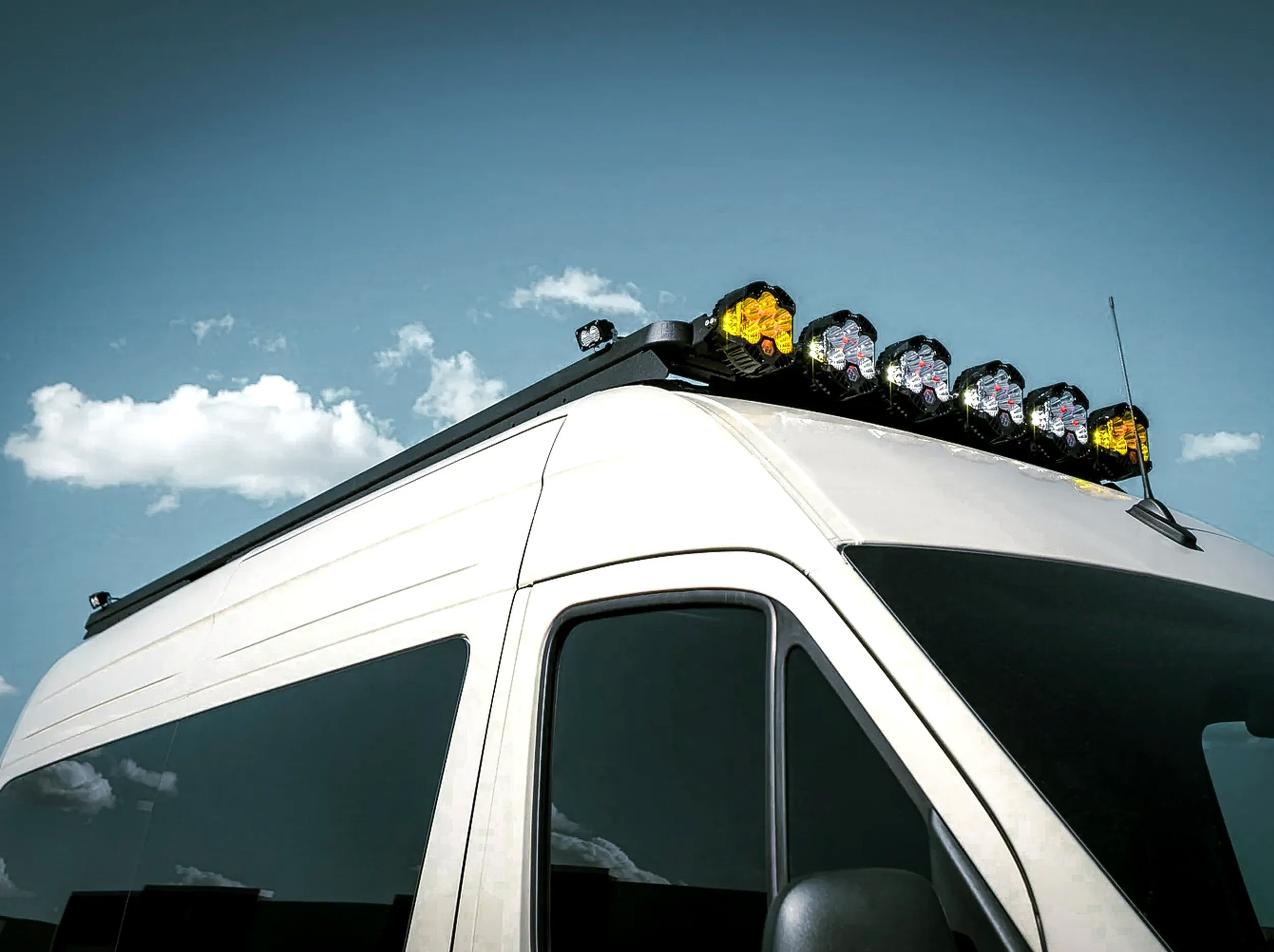

Can I install auxiliary lighting on the ACS ROOF?

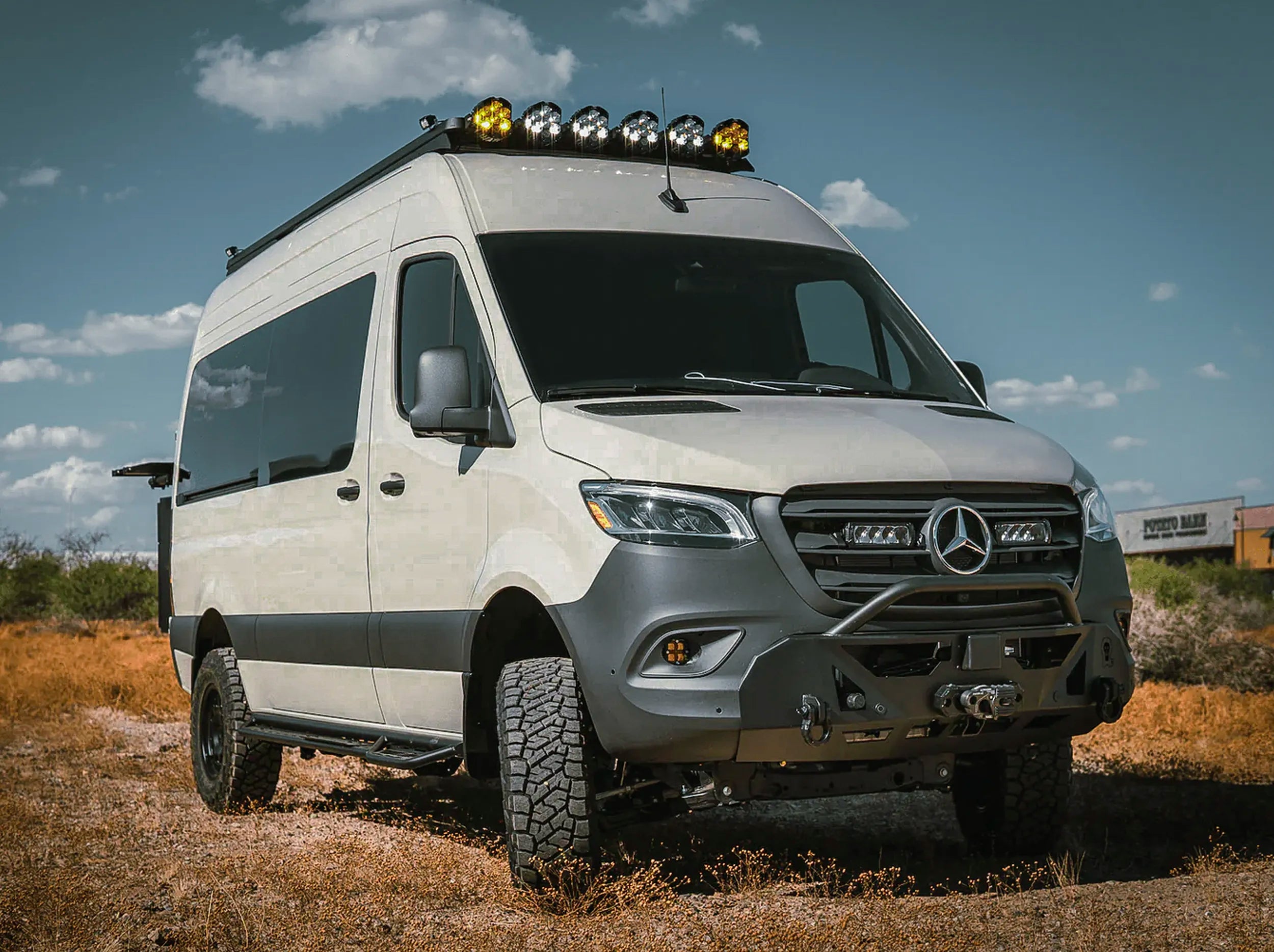

Yes. The corner caps remove for quick auxiliary lighting installation.
